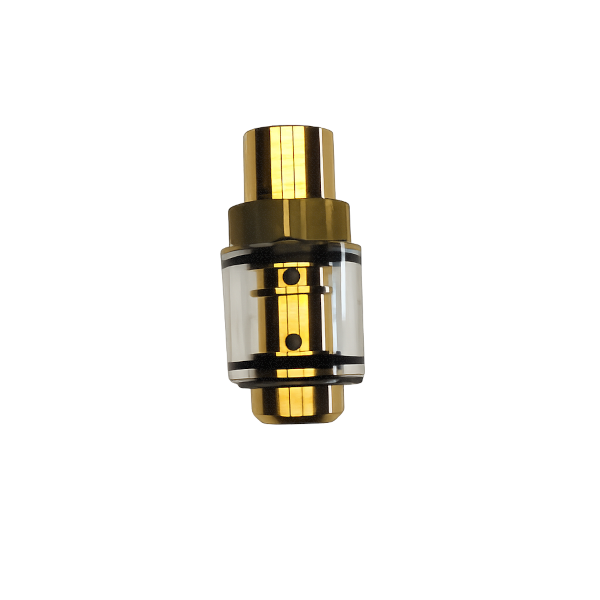

Sight glass with 1.0 mm nozzle/check valve

Sight glass with 1.0 mm nozzle/check valve – Precise flow control and visual monitoring

A sight glass with 1.0 mm nozzle/check valve is an essential component in closed systems where it is crucial to monitor liquid or gas flow without opening the system. This intelligent solution combines two functions in a single compact unit: visual inspection and precise flow control. Whether you are working with refrigeration systems, hydraulic systems, lubrication systems, or industrial process plants, this sight glass ensures that you always have full control over your system’s performance and condition.

Why choose a sight glass with 1.0 mm nozzle/check valve?

1. Visual monitoring of the flow The sight glass section allows you to directly observe the condition of the liquid or gas in the system. You can quickly and easily check:

• Presence of flow – Is there movement in the pipe, or is the system blocked?
• Air or gas bubbles – Are there unwanted bubbles that may affect system efficiency?
• Fluid quality – Is the fluid clean, or are there contaminants that require attention?
• Fill level – Is the system properly filled, or is fluid missing?

This visual feedback is crucial for preventing downtime and ensuring optimal system operation.

2. Precise flow control with 1.0 mm nozzle If the insert in the sight glass is a 1.0 mm nozzle, it functions as a calibrated orifice that:

• Limits flow rate – Ensures that the flow remains within the desired parameters.
• Creates controlled pressure drop – Stabilizes the system and prevents sudden pressure spikes.
• Protects downstream components – Prevents damage to sensitive parts such as pumps, valves, or sensors by reducing flow velocity.
• Stabilizes flow – Ensures smooth and predictable flow, which is essential in precision systems.

The smaller the nozzle diameter, the greater the flow resistance – ideal for systems where precise flow control is required.

3. Protection against backflow with check valve If the insert is instead a check valve, it provides another equally important function:

• Prevents backflow – Ensures that liquid or gas flows in only one direction, which is critical for system stability.
• Protects pumps and compressors – Avoids damage caused by unwanted reverse flow.
• Maintains system pressure – Ensures that pressure is retained even when the pump is switched off.
• Ensures correct flow direction – Essential in systems where flow direction is critical, such as refrigeration or hydraulic systems.

Typical applications

This versatile component is ideal for a wide range of industrial and commercial applications, including:

• Refrigeration systems and heat pumps – Monitoring refrigerant flow and preventing backflow.
• Hydraulic systems – Ensuring correct oil flow and protecting against pressure surges.
• Lubrication systems – Visual inspection of lubricant condition and flow.
• Industrial process systems – Monitoring chemicals, gases, or liquids in closed circuits.
• Brewery and food processing systems – Ensuring hygienic and controlled flow of ingredients.

Quality and durability

The sight glass with 1.0 mm nozzle/check valve is constructed with:

• Transparent, durable glass – Resistant to high pressure and temperatures.
• Precision-machined metal housing with connections – Compatible with standard pipes and fittings.
• Seals (O-rings) – Ensure 100% tightness and prevent leaks.
• Internal insert – Either a calibrated 1.0 mm nozzle or a reliable check valve, depending on your needs.

Gain full control over your system

With this sight glass, you get both visibility and control in one unit. Whether you need to monitor flow, restrict flow rate, or prevent backflow, this component is the perfect solution to optimize your system’s performance and service life.

Are you ready to upgrade your system with a sight glass with 1.0 mm nozzle/check valve for precise flow control and visual monitoring?
